Professional Wire Marking LETATWIN LM-3000PRO EU

LETATWIN LM-3000PRO

Mark Smart,Work Smart

MAX launched the first tube printer in 1994.

As one of the pioneers of portable tube printers in Japan, we have continuously improved our products, establishing a leading position with a high domestic market share.

Building on this legacy, we developed the long-awaited high-end model, LM-3000PRO.

Combined with the innovative "GRIPSLEEVE" consumable, it makes manufacturing and maintaining control panels easier than ever.

Catalog download

( LM-3000PRO )

PRODUCTS

Innovative
Square Tube

Any pitch length, print directly!

*up to 150mm/pitch, maximum 75m/printing.

UL certified.

CRLUS

What is
GRIPSLEEVE?

( POINT 01 )

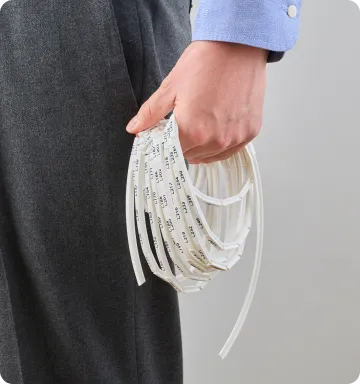

Half-cut printed tubes
— Just tear and attach to the wire.

Compared with the conventional method (transparent sleeve + ID plate), the number of work processes can be reduced, improving productivity.

Printed tubes can be bundled for convenient transport.

point image1
tube image

( POINT 02 )

Advantages of the square tube

flat printing

Excellent readability with flat printing

Enhanced visibility by the combination of white tube and yellow tube, even for long text.

resistant to slipping and rotation

Resistant to slipping and rotation

Can be held at any position, less prone to rotation compared with round tubes, and easier to see.

Printable on a Wide
Range of Consumables

LM-3000PRO is designed for printing a variety of consumables to match different work needs of users.

GRIPSLEEVE, block markers, ID plates, and heat-shrink tubes—all can be printed with a single unit.

  • consumables picture1
  • consumables picture3
  • consumables picture4
  • consumables picture2

Easy-to-Use
Software
LETATWIN
PC EDITOR PRO

The software includes illustrations and guidance features, making it easy to operate even for first-time users.

Click here for how to operate
  • software picture1
  • software picture2
  • software picture3
  • software picture4

Promotional Video

Promotion Video play

User Voice

Interview play

Specifications

NameLM-3000PRO
DimentionsApprox.427(W)x256(D)x301(H)mm
WeightApprox.11kg(Excluding accessories and power cord)
Printing methodThermal transfer method(300dpi)
Display4.3inch colourful touch panel(Back light)
Print speed (Tube print)80mm/sec(Standard), 50mm/sec(Low temperature mode)
80blocks(20mm pitch/LM-TU432N2/Half cut/Standard temp)
Tube sizeφ1.5 to φ10.0mm(PVC tube)
φ2.0 to φ19.0mm(Heat shrink tube)
Tape sizeWidth 5/9/12mm, White and Yellow(MAX genuine tapes)
ID plate sizeWidth 4.1mm(MAX LM-ID PLATE4110)
Terminal block markerWAGO products
2009-113/114/115/145/515/615
Marker stripWidth 5.5mm to 12.0mm
Ink ribbon(Refillable)Black 200m/roll(PVC&Heat shrink), White 180m/roll(Heat shrink)
Tube cutting methodAuto half cut/Manual full cut
InterfaceWifi/USB-A(USB flash memory)/USB-B(2.0 full speed)/LAN
Power supplyInput AC100 to 240V 50/60Hz
Power consumptionMax 70W(15W stand by/10W hibernation)
Supported OS (in March 2026)Windows 11
*Windows is trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Download

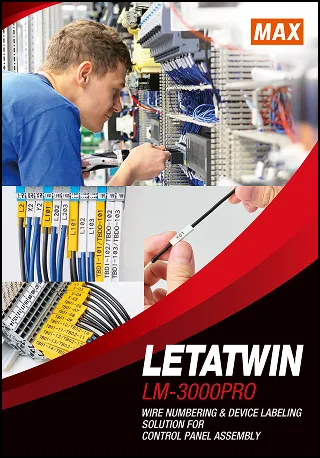

Catalog

Catalog

download icon Download

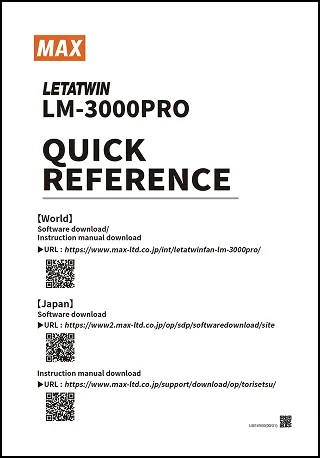

Quick Reference

Quick Reference

download icon Download

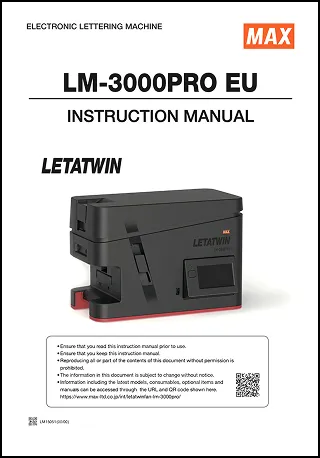

Manual

Manual

download icon Download

Software

Firmware

Coming soon
