Professional Wire Marking LETATWIN LM-3000PRO US

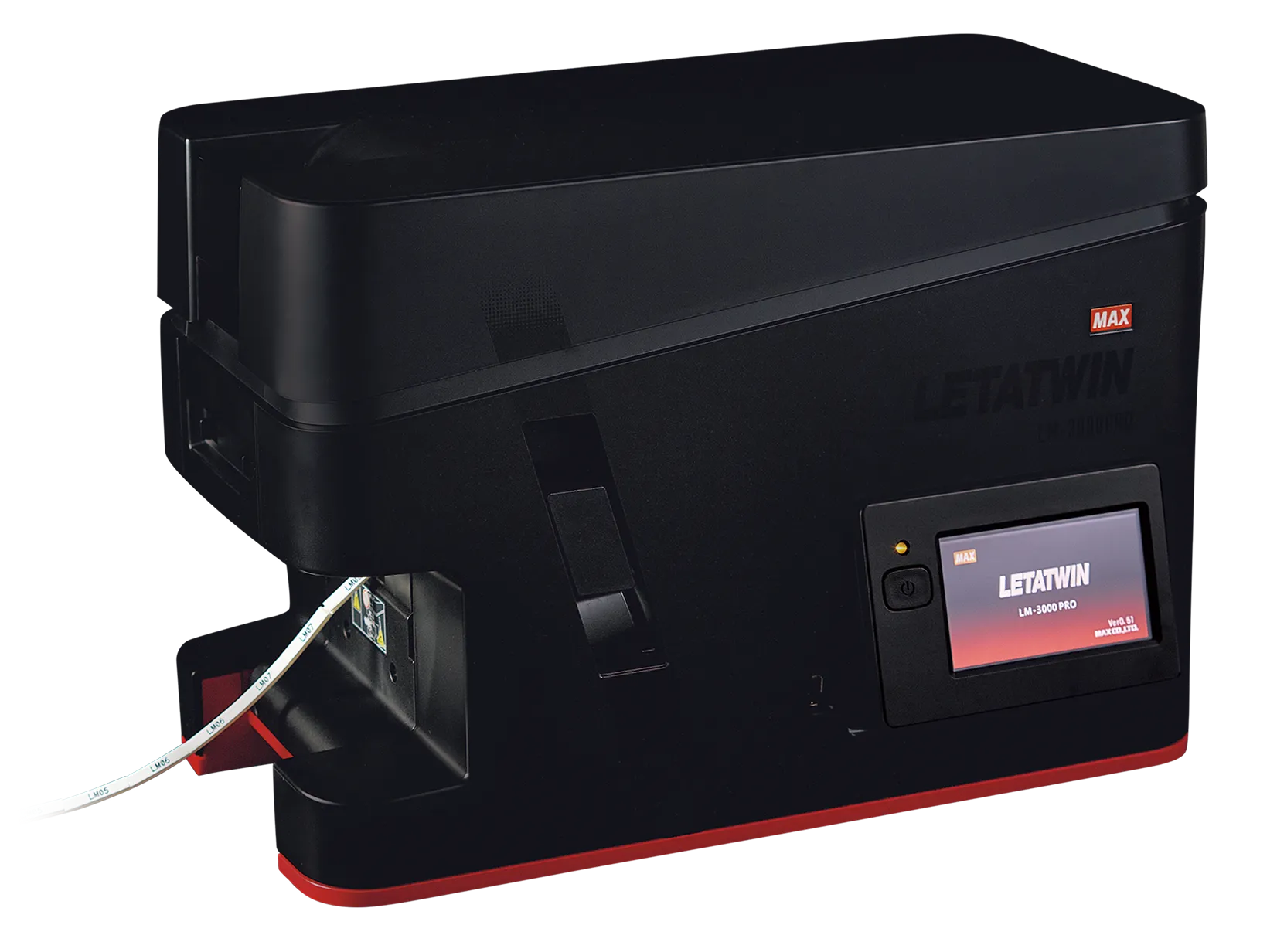

LETATWIN LM-3000PRO

Mark Smart,Work Smooth

MAX launched the first tube printer in 1994.

As one of the pioneers of portable tube printers in Japan, we have continuously improved our products, establishing a leading position with a high domestic market share.

Building on this legacy, we developed the long-awaited high-end model, LM-3000PRO.

Combined with the innovative "GRIPSLEEVE" consumable, it makes manufacturing and maintaining control panels easier than ever.

Catalog download

( LM-3000PRO )

PRODUCTS

Innovative

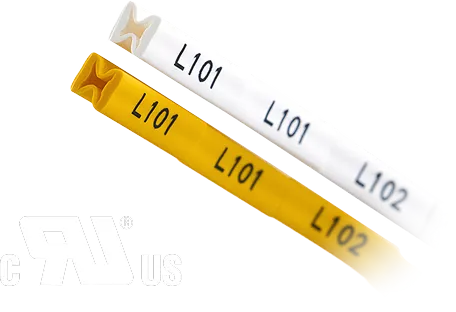

Square Tube

Any pitch length, print directly!

*up to 150mm/pitch, maximum 75m/printing.

UL certified.

CRLUS

What is
GRIPSLEEVE?

( POINT 01 )

Half-cut printed tubes
— Just tear and attach to the wire.

Compared with the conventional method (transparent sleeve + ID plate), the number of work processes can be reduced, improving productivity.

No heat gun is needed anymore. Occupational accidents caused by hot air can be prevented.

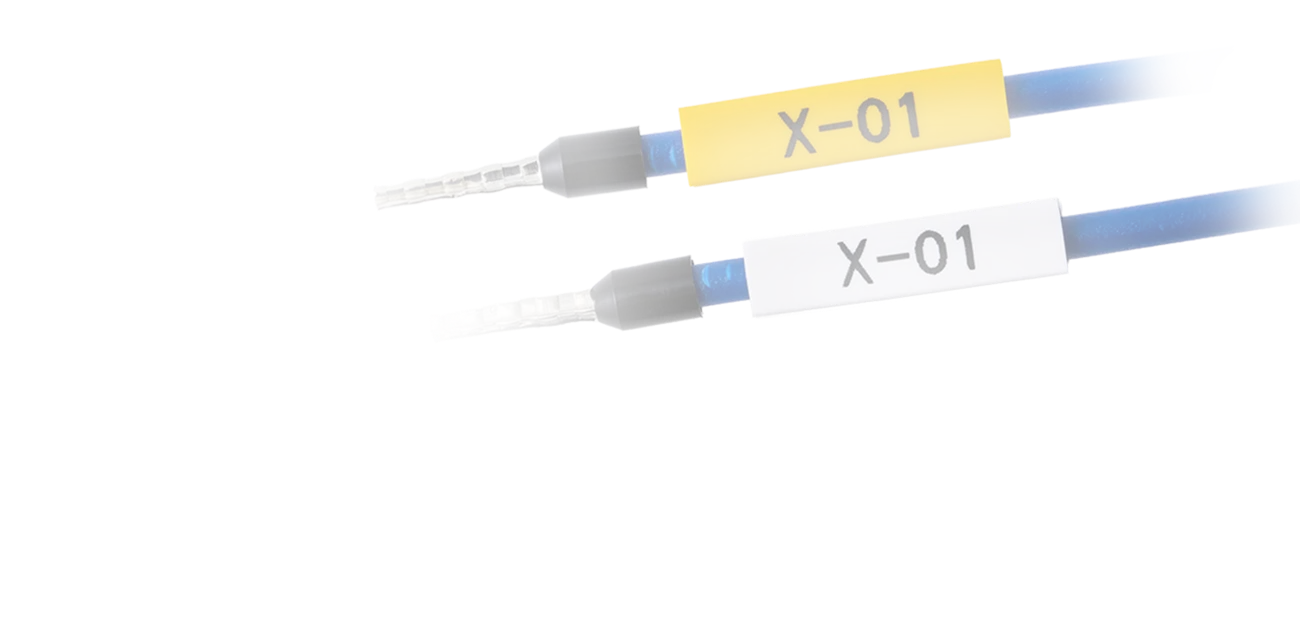

tube image

( POINT 02 )

Advantages of the square tube

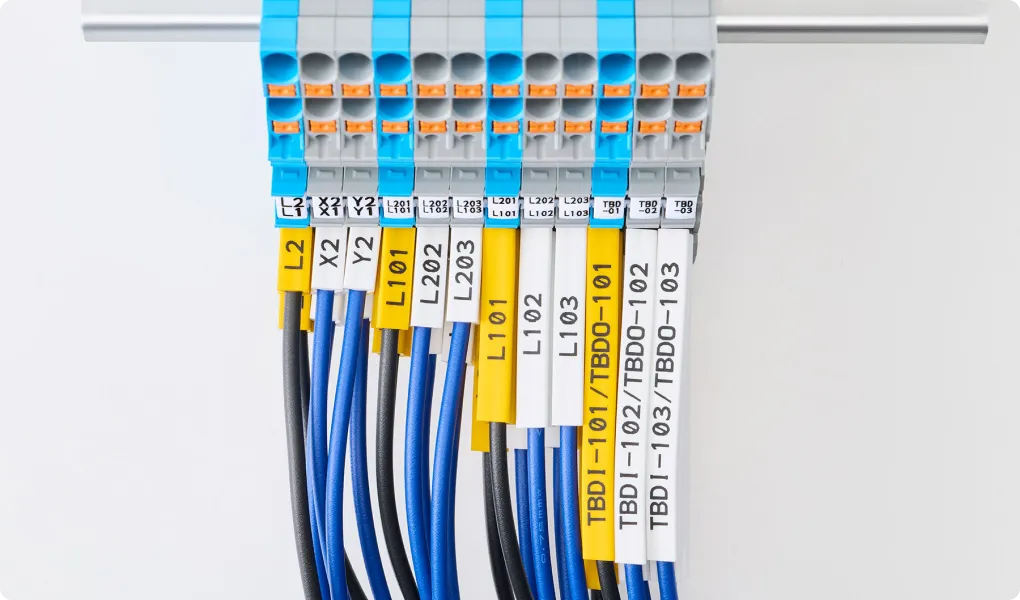

flat printing

Excellent readability with flat printing

Enhanced visibility by the combination of white tube and yellow tube, even for long text.

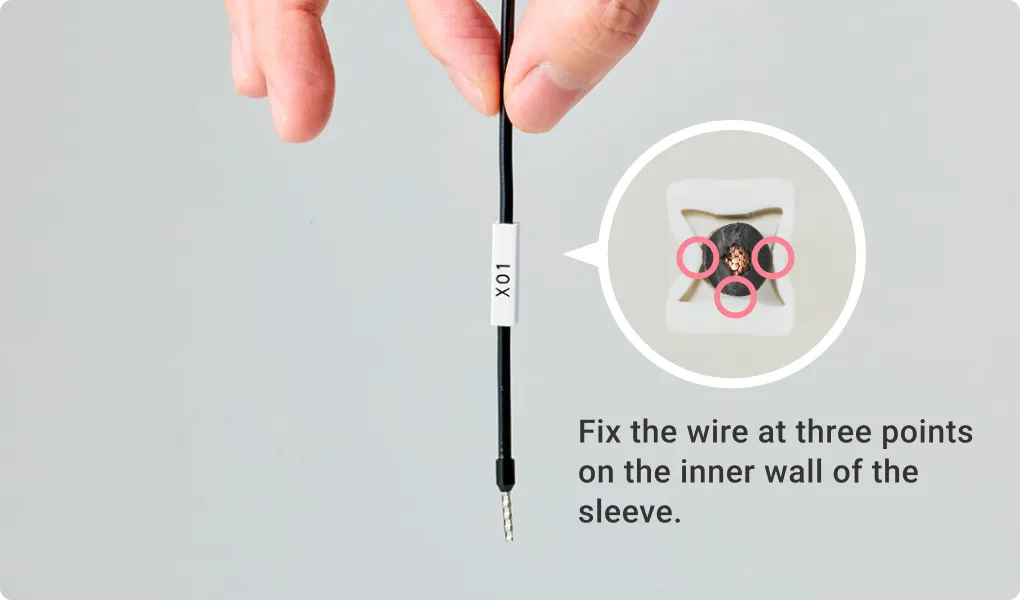

resistant to slipping and rotation

Resistant to slipping and rotation

Can be held at any position, less prone to rotation compared with round tubes, and easier to see.

Printable on a Wide
Range of Consumables

LM-3000PRO is designed for printing a variety of consumables to match different work needs of users.

GRIPSLEEVE, heat-shrink tubes, block markers, ID plates—all can be printed with a single unit.

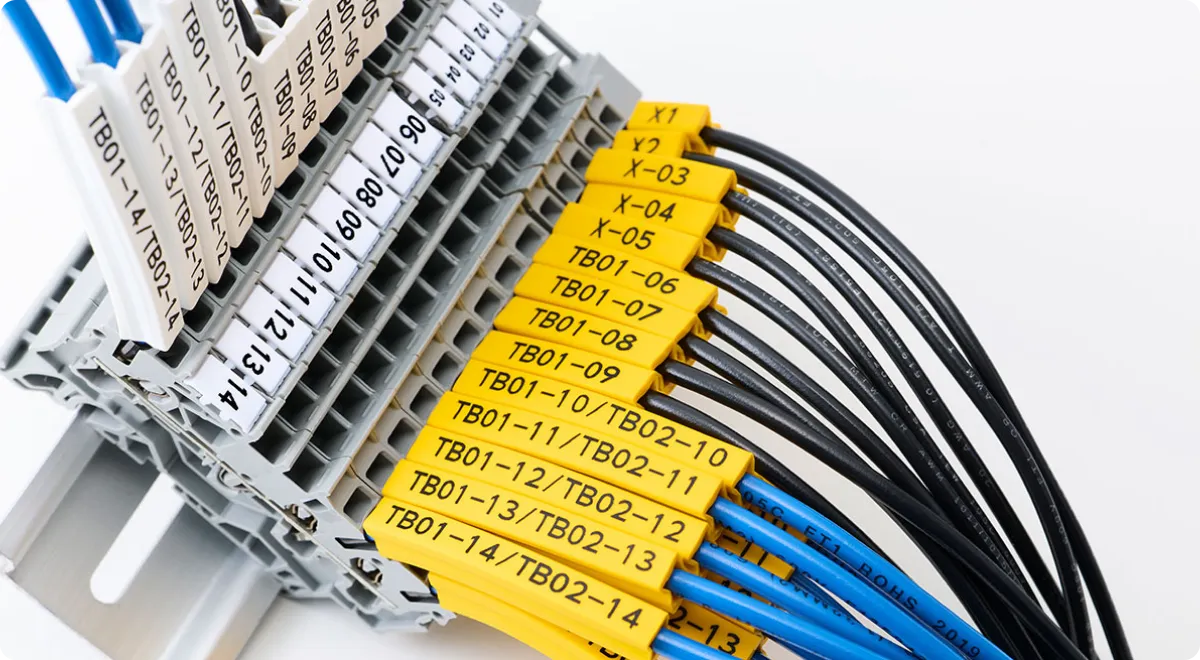

  • consumables picture1

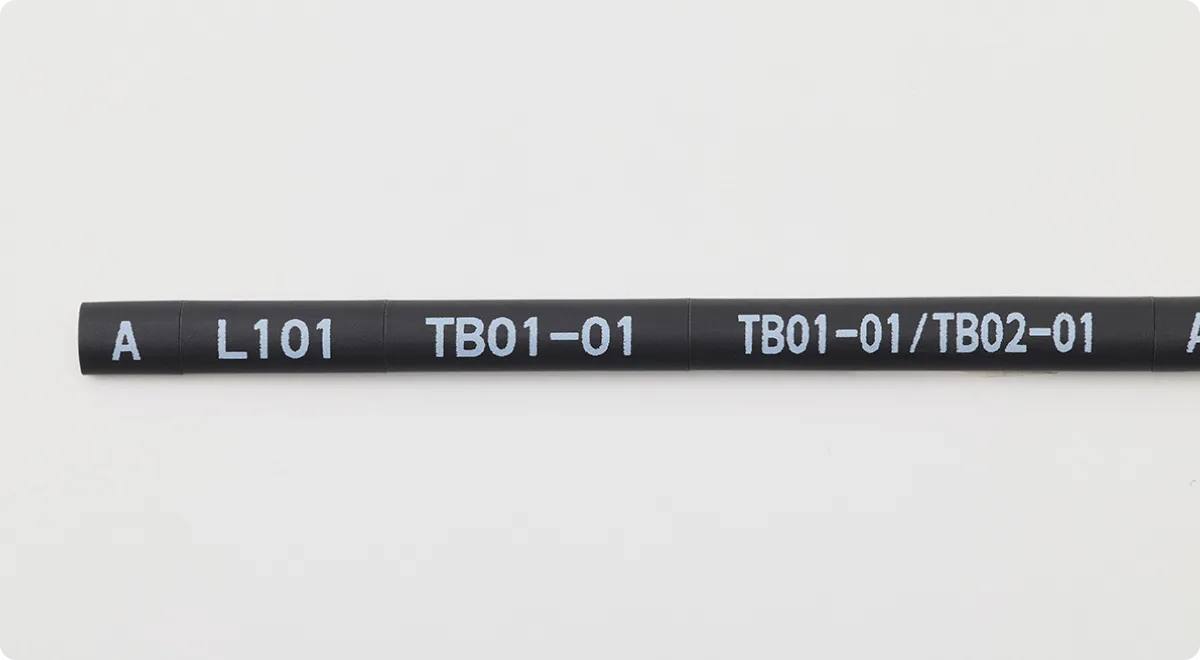

  • consumables picture2

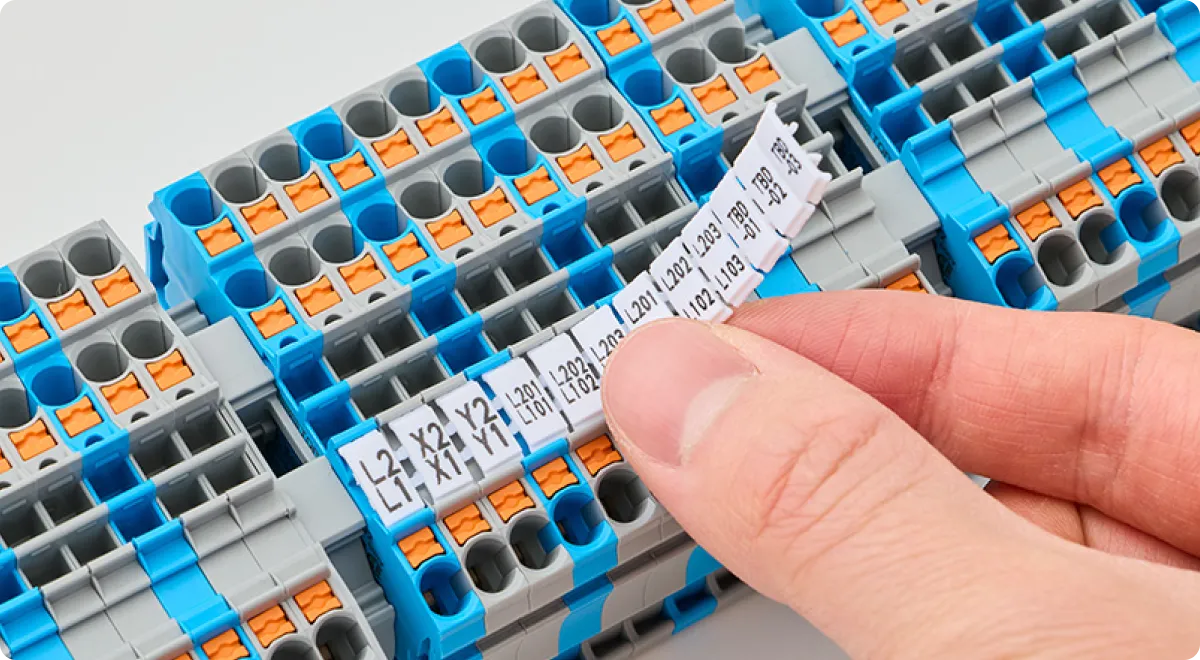

  • consumables picture3
  • consumables picture4

Easy-to-Use
Software

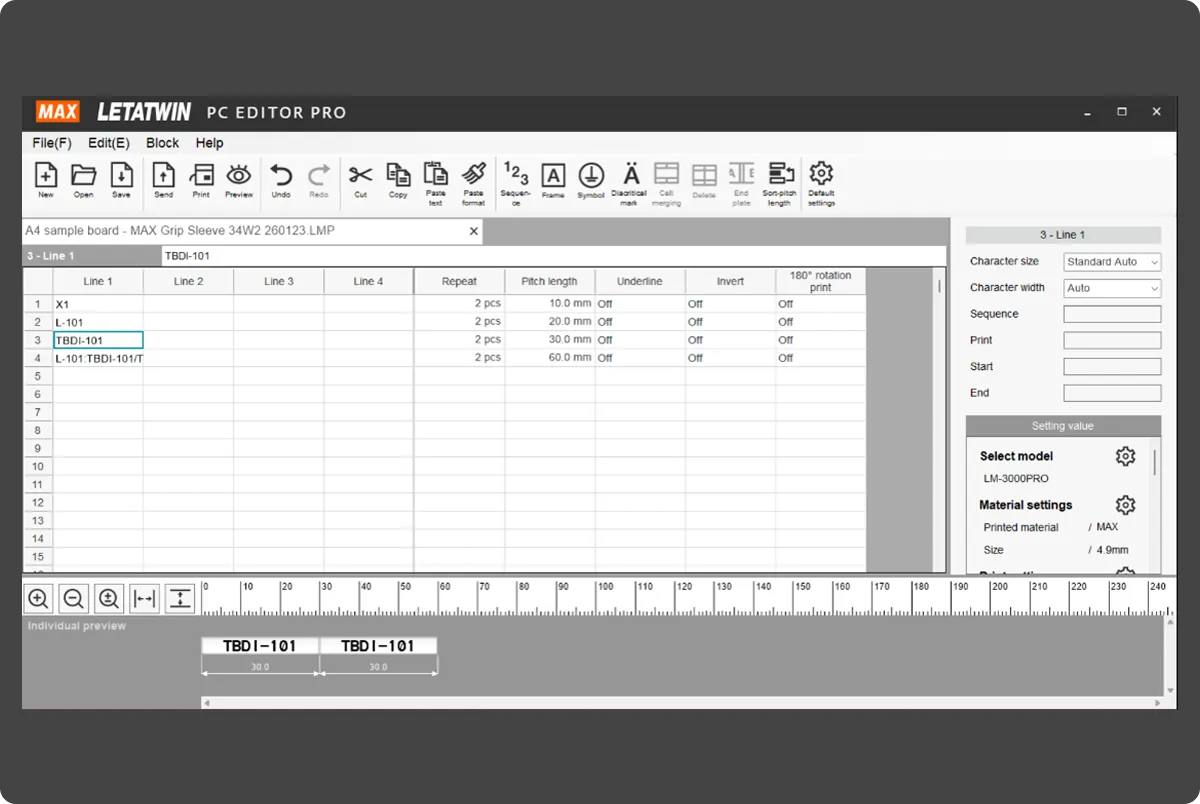

LETATWIN
PC EDITOR PRO

The software includes illustrations and guidance features, making it easy to operate even for first-time users.

Click here for how to operate

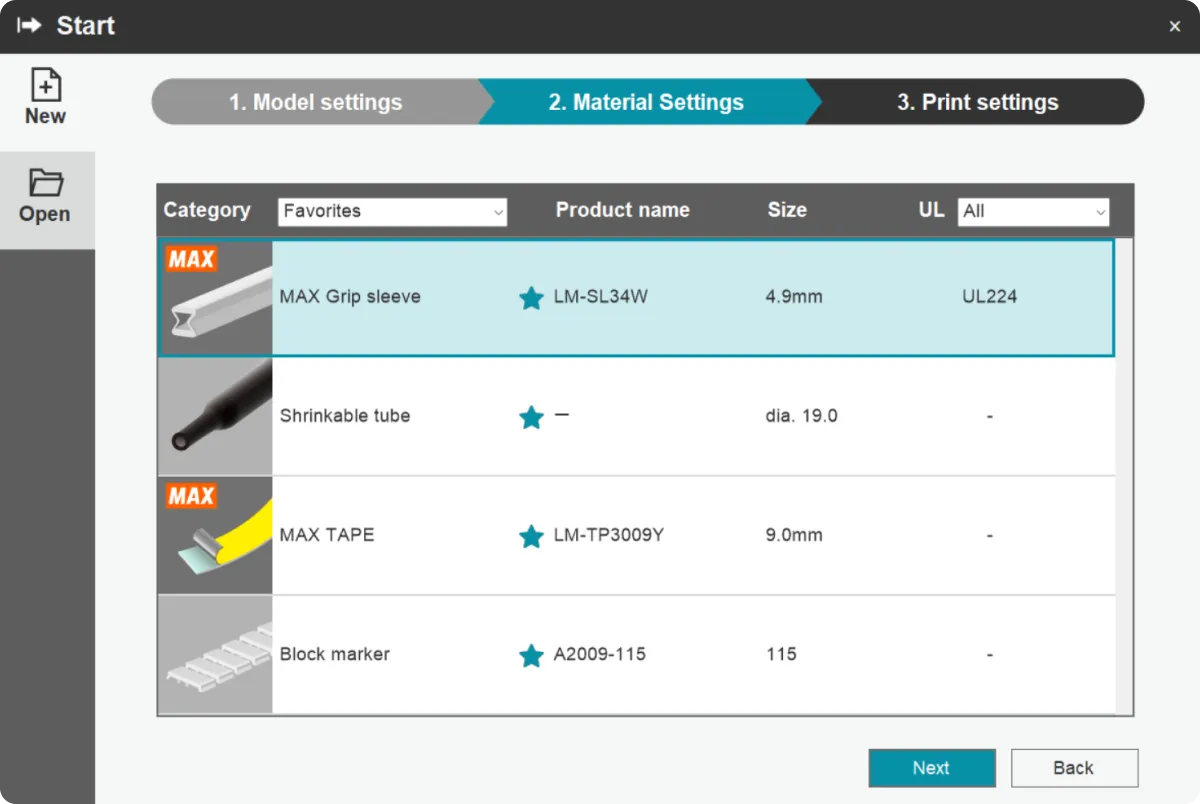

  • software picture1

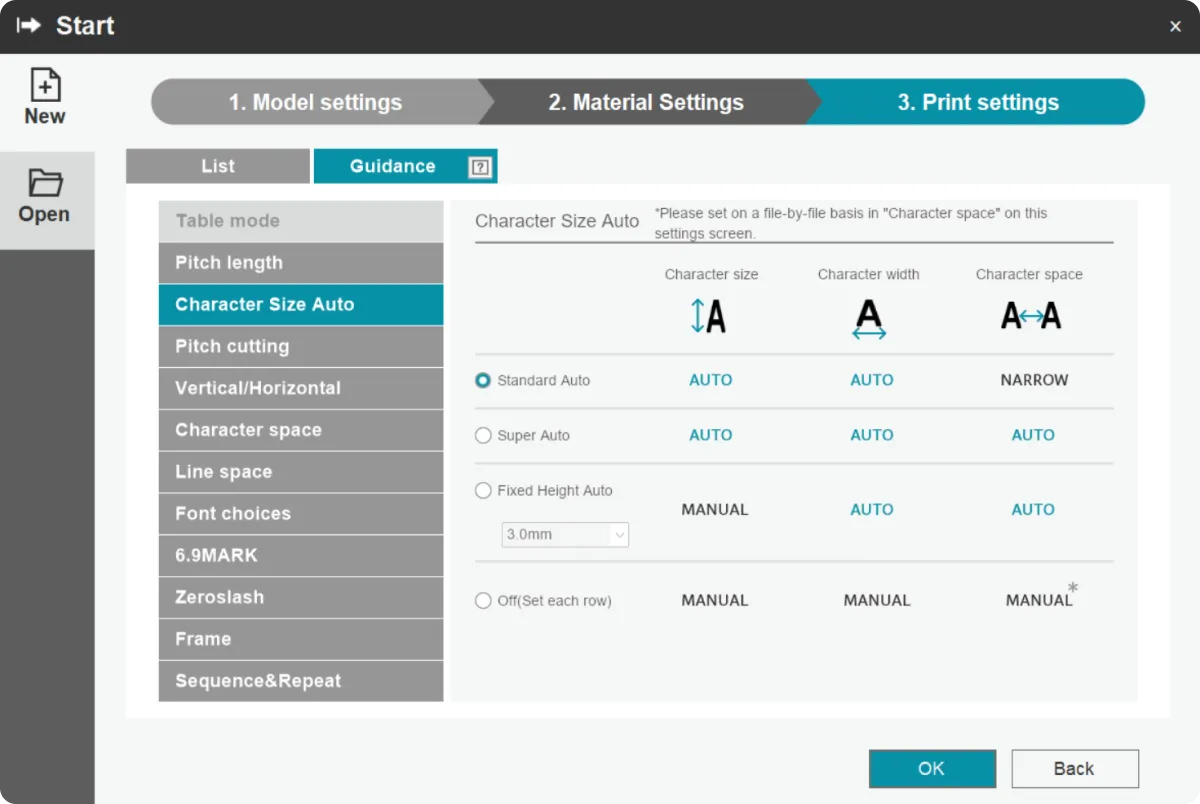

  • software picture2
  • software picture3

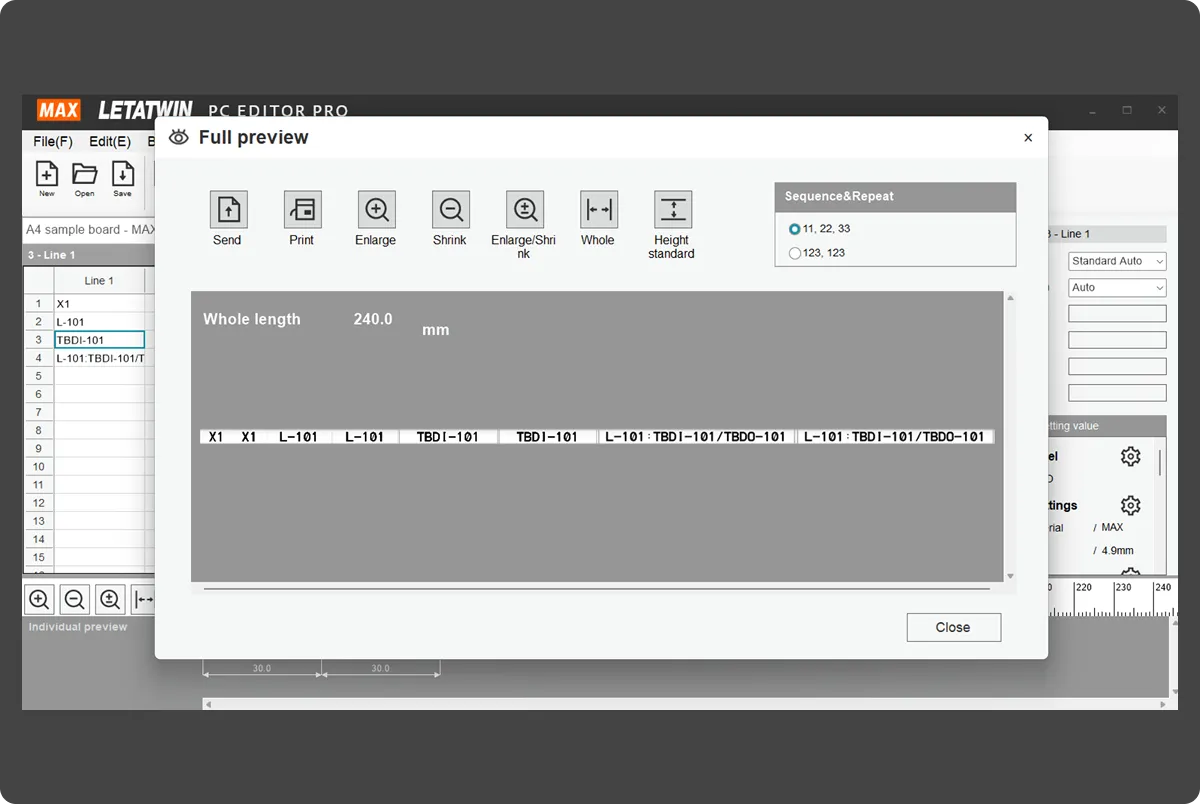

  • software picture4

Promotional Video

Promotion Video play

User Voice

Interview play

Specifications

NameLM-3000PRO
DimentionsApprox.427(W)x256(D)x301(H)mm(16.81Wx10.08Dx11.85H in)
WeightApprox.11kg(24.252lb)
*Excluding accessories and power cord
Printing methodThermal transfer method(300dpi)
Display4.3inch colourful touch panel(Back light)
Print speed (Tube print)80mm(3.14in)/sec(Standard), 50mm(1.96in)/sec(Low temp mode)
80blocks(20mm pitch/LM-TU432L2/Half cut/Standard temp)
Tube sizeφ1.5 to φ10.0mm(PVC tube)
φ2.0 to φ19.0mm(Heat shrink tube)
*PANDUIT HS tube was tested print quality, but not guaranteed.
Tape sizeWidth 5/9/12mm, White and Yellow(MAX genuine tapes)
ID plate sizeWidth 4.1mm(MAX LM-ID PLATE4110)
Terminal block markerWAGO products 2009-113/114/115/145/515/615
Marker stripWidth 5.5mm to 12.0mm
Ink ribbon(Refillable)Black 200m(656.2ft)/roll(For PVC and White heat shrink tube)
White 180m(590.55ft)/roll(Only for Black heat shrink tube)
Tube cutting methodAuto half cut/Manual full cut
InterfaceWifi/USB-A(USB flash memory)/USB-B(2.0 full speed)/LAN
Power supplyInput AC100 to 240V 50/60Hz
Power consumptionMax 70W(15W stand by/10W hibernation)
Supported OS (in March 2026)Windows 11
*Windows is trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Download

Catalog

Catalog

download icon Download

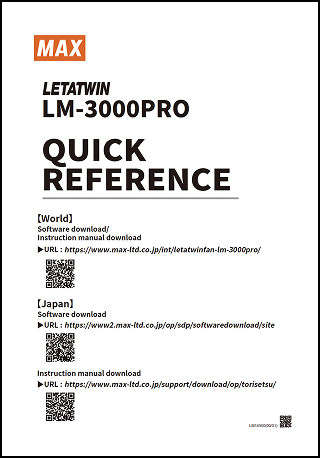

Quick Reference

Quick Reference

download icon Download

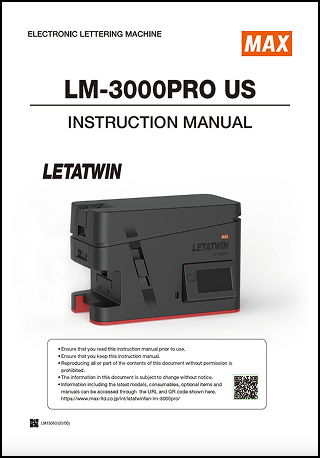

Manual

Manual

download icon Download

Software

download icon Download

Firmware

Coming soon
