LETATWIN LM-3000PRO

Mark Smart,Work Smart

MAX launched the first tube printer in 1994.

As one of the pioneers of portable tube printers in Japan, we have continuously improved our products, establishing a leading position with a high domestic market share.

Building on this legacy, we developed the long-awaited high-end model, LM-3000PRO.

LM-3000PRO is a professional desktop printer that offers enhanced functionality and operability.

Catalog download

( LM-3000PRO )

PRODUCTS

( POINT 01 )

High-Speed
Printing with 63%
Higher Producivity

LM-3000PRO can print up to 85 half-cut printed tubes per minute, offering significantly higher productivity compared to the portable model (52 half-cut printed tubes per minute.).

* Compared to MAX LETATWIN LM-550A3 series,
test condition :φ3.2mm tube / 20mm pitch / 7 characters printing

( POINT 02 )

Wide Range of Consumables

Consumables for heavy users

LM-3000PRO is designed for printing a variety of consumables to match different work needs of users.

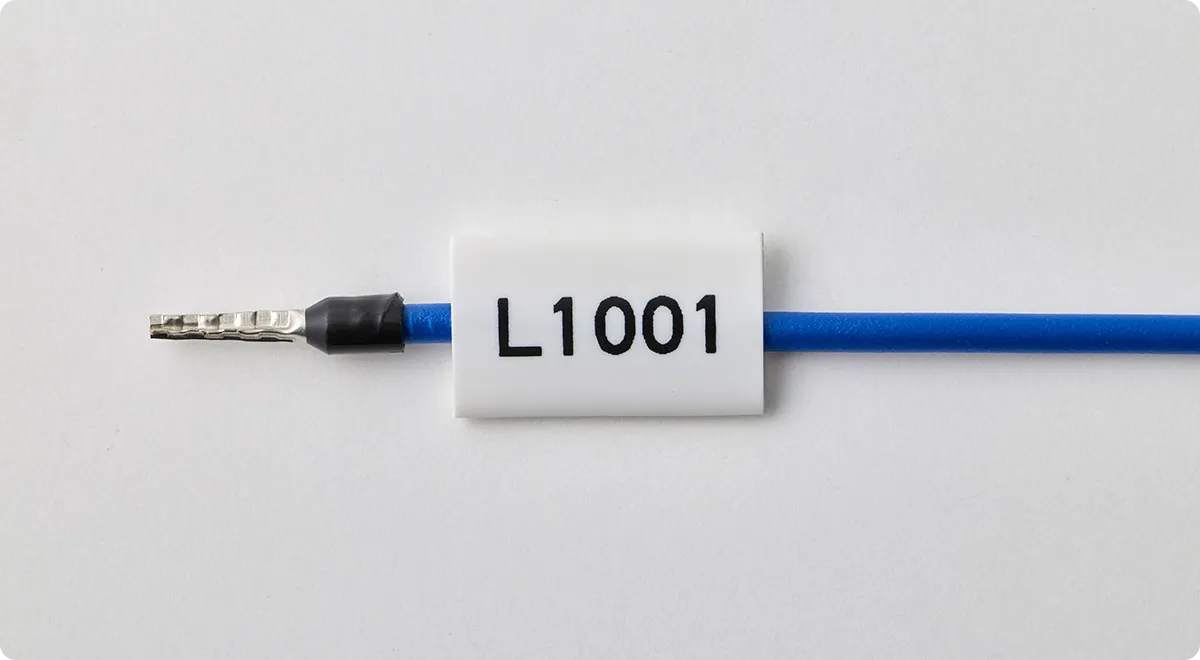

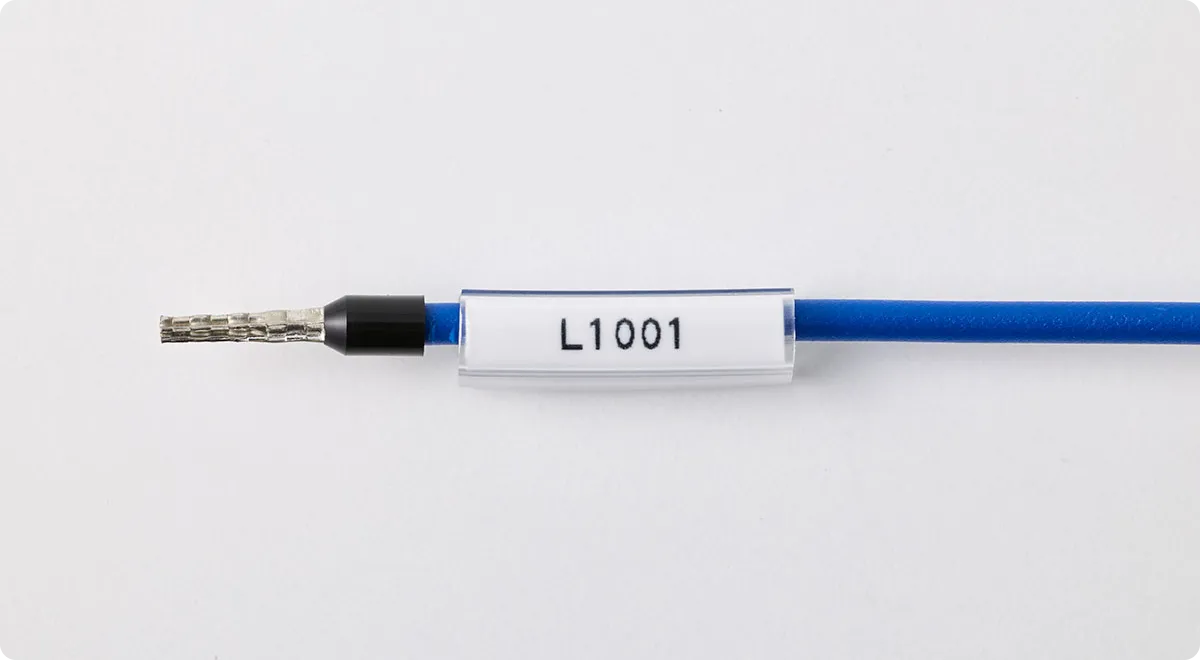

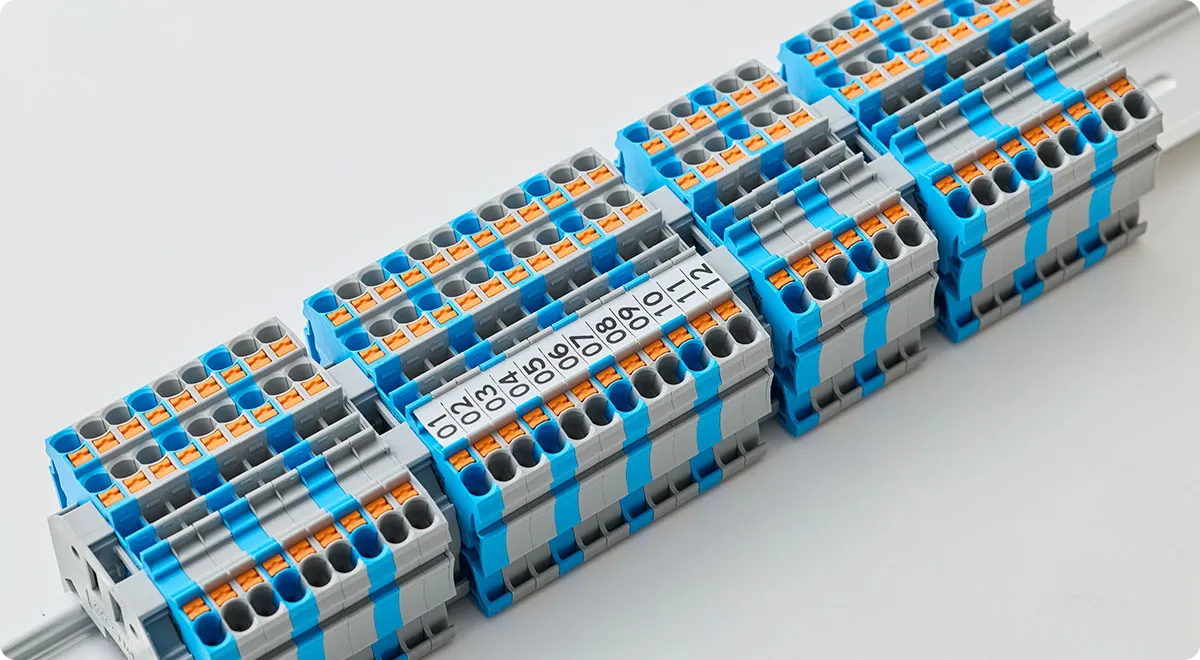

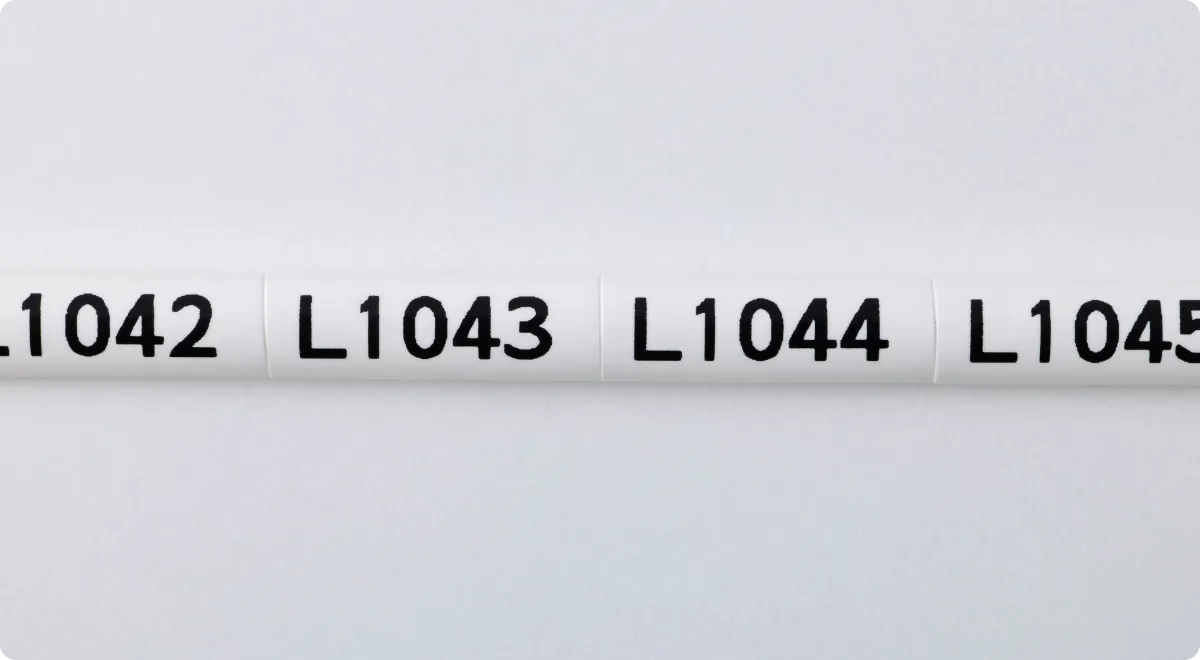

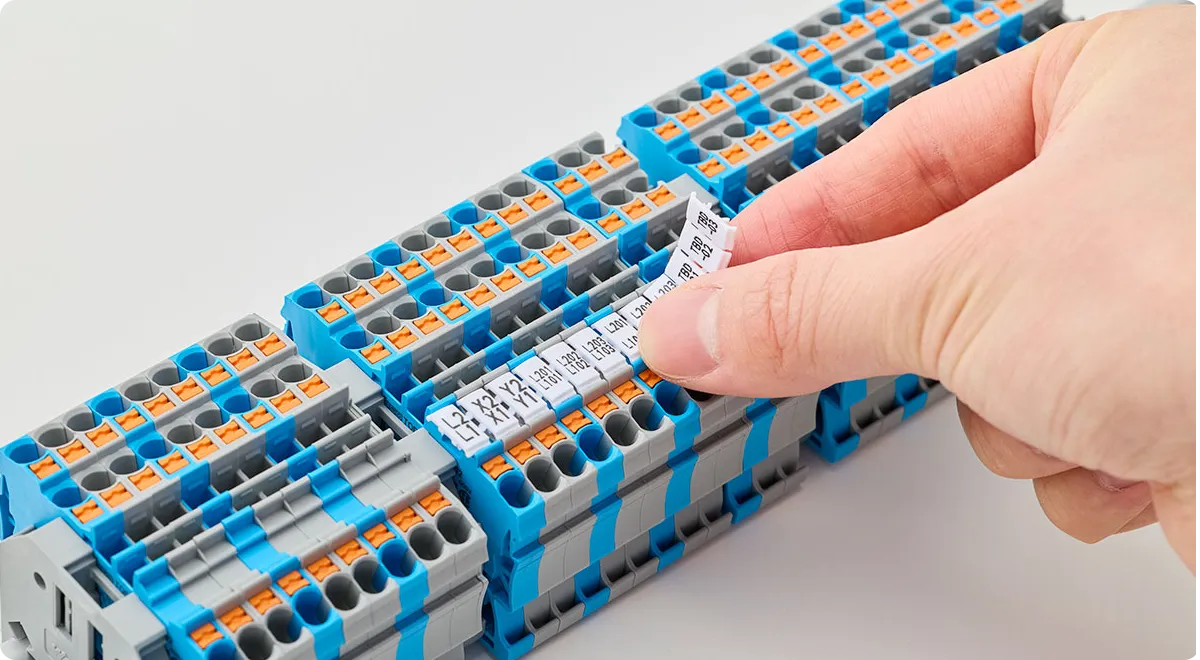

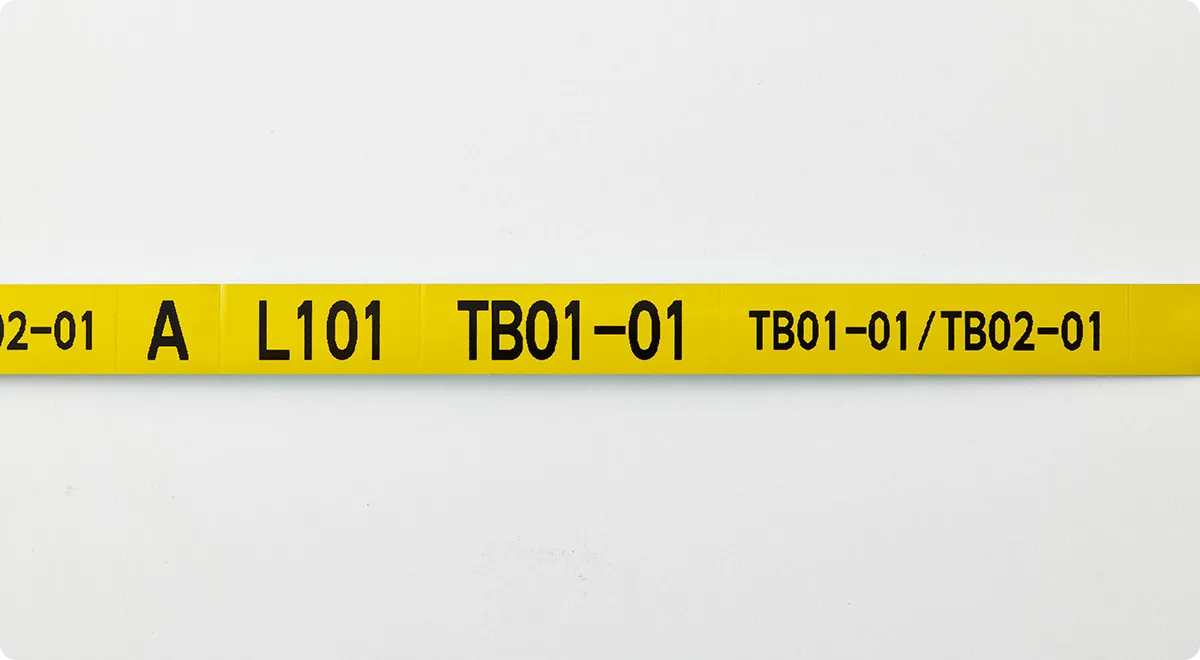

Tubes, block markers, ID Plates, polyester tape, markerstrip-all can be printed with a single unit.

  • software picture1
  • software picture2
  • software picture3
  • software picture4
  • software picture5
  • software picture6

New longer ink ribbon for LM-3000PRO

New longer ink ribbon for LM-3000PRO

New longer ink ribbon for LM-3000PRO

The new 200-meter ink ribbon allows you to print a large volume with a single ribbon.

Black ink ribbon LM-IR3015B can be printed on both PVC and heat-shrink tube (polyolefin).

It reduces the frequency of replacements and improves work efficiency.

*Compared to LM-IR50B,LM-IR50BP

( POINT 03 )

User-Replaceable
Key Components

Half cutter, platen roller and thermal head can be replaced by the end-user themselves.

Its high maintainability reduces downtime caused by repairs and prevents operational delays.

( POINT 04 )

Easy-to-Use Software

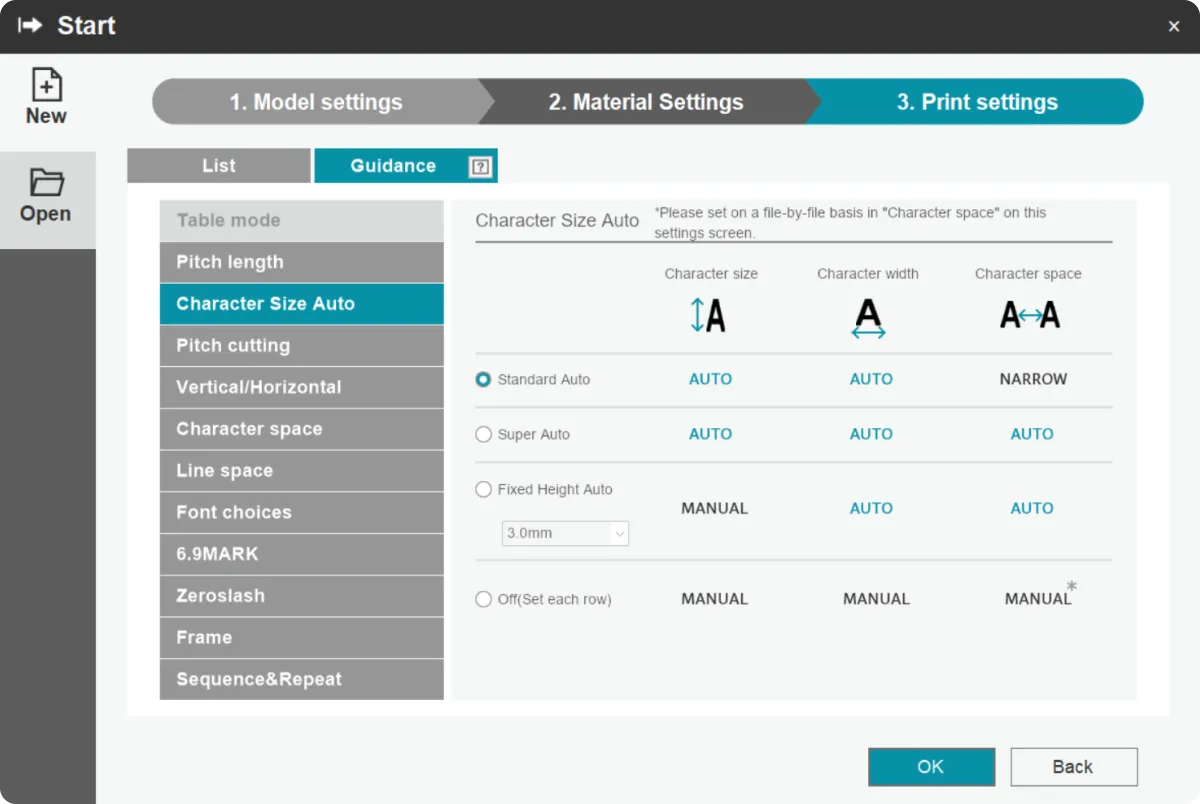

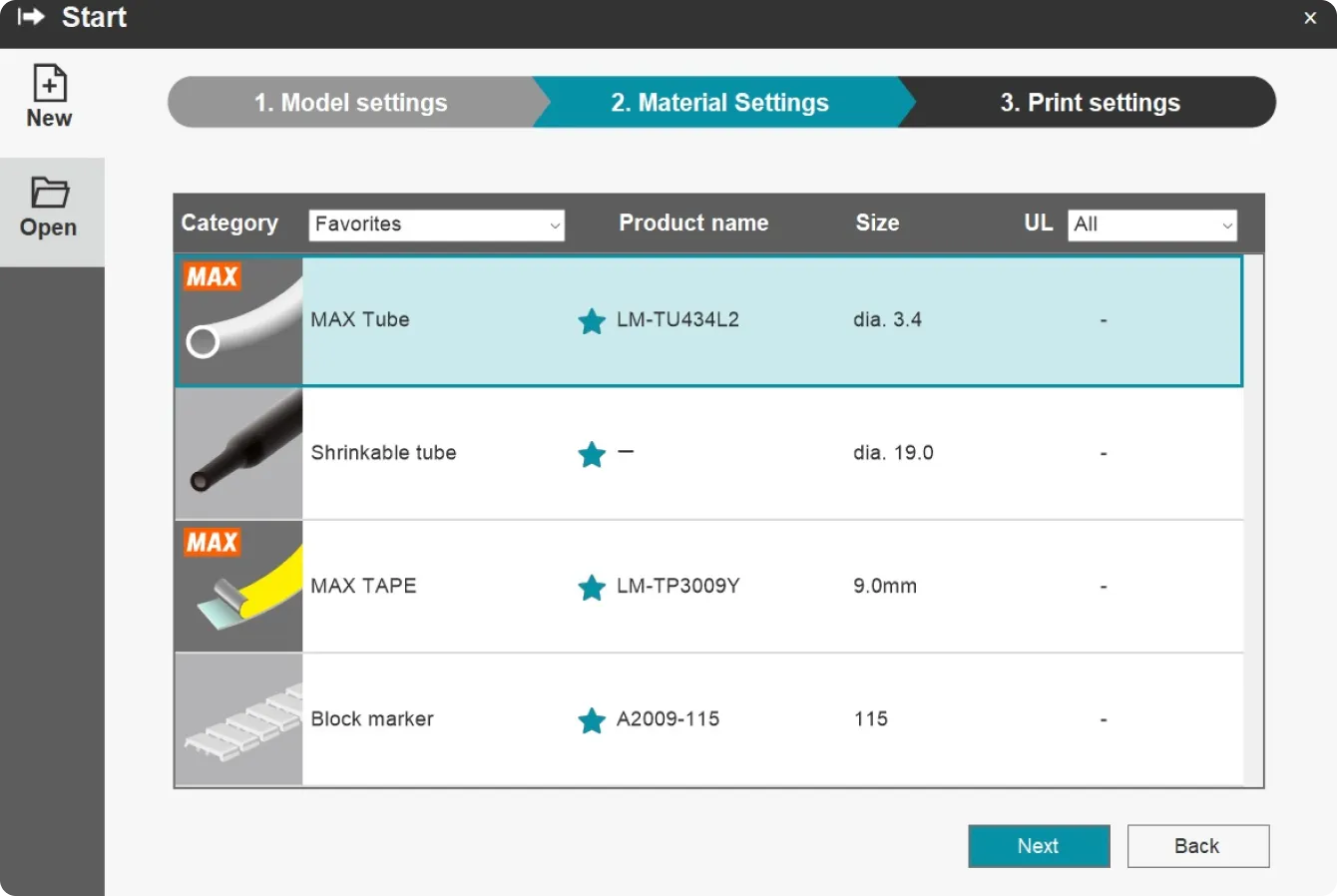

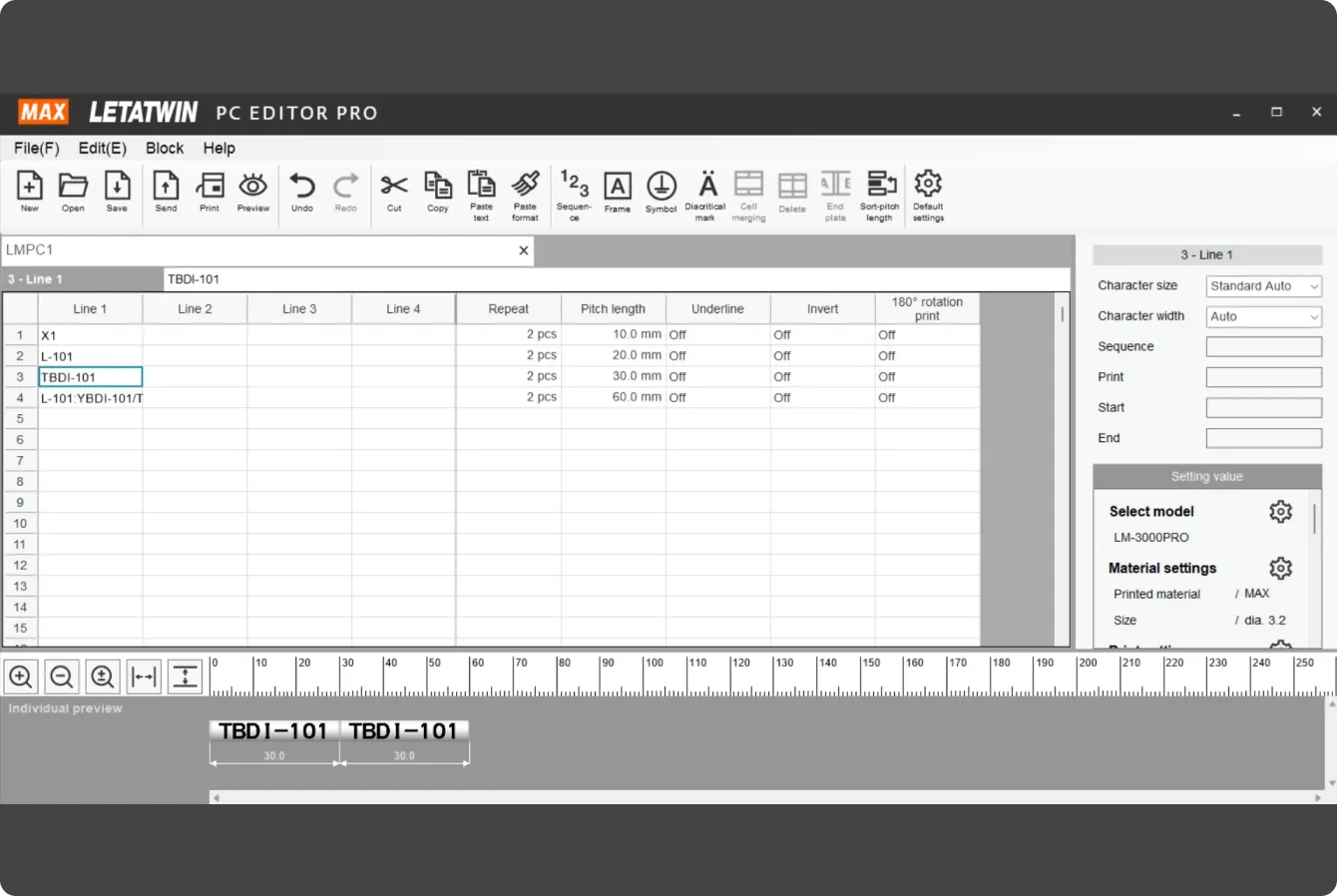

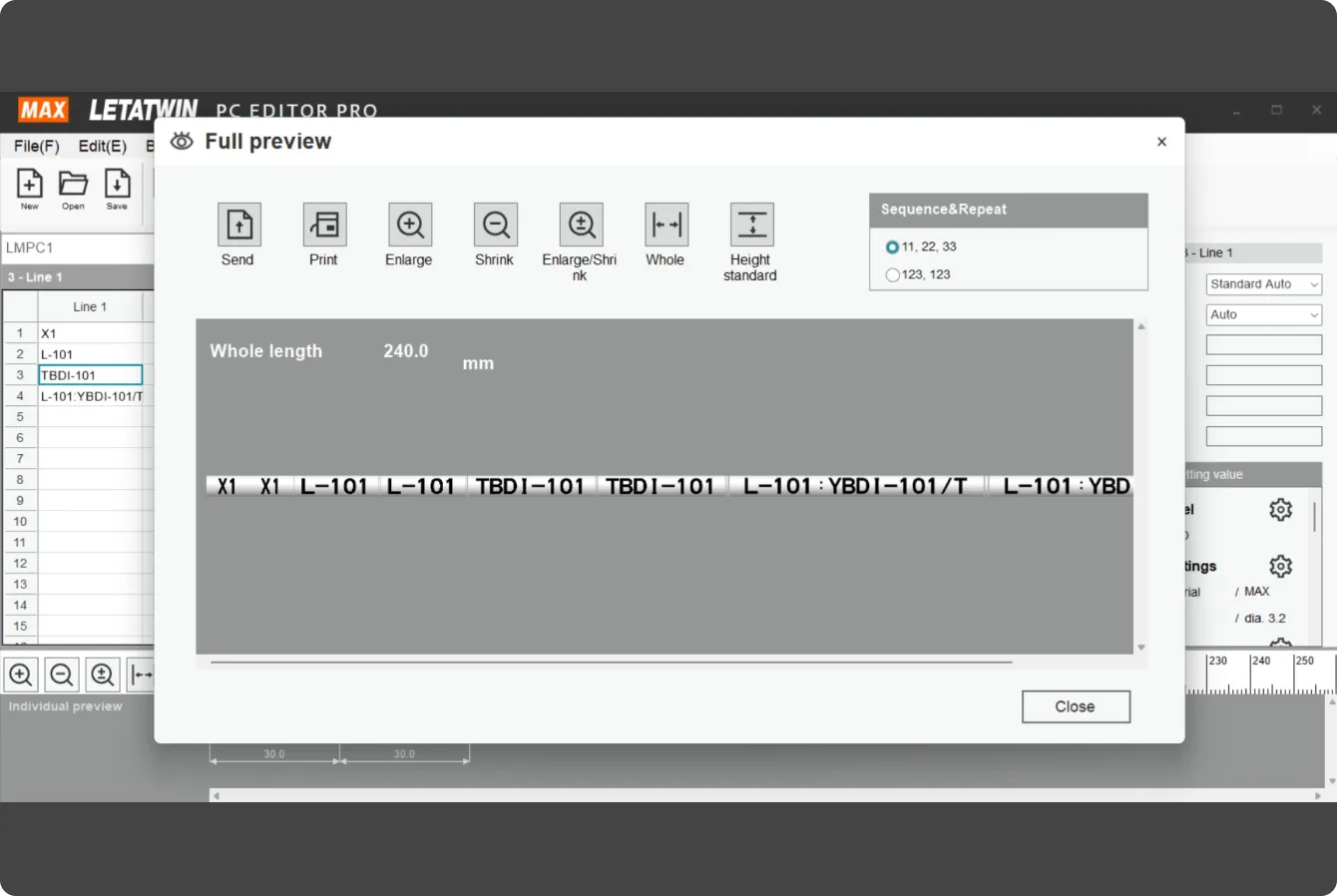

LETATWIN PC EDITOR PRO

The software includes illustrations and guidance features, making it easy to operate even for first-time users.

Click here for how to operate
  • software picture1
  • software picture2
  • software picture3
  • software picture4

Promotional Video

Promotion Video play

Specifications

LM-3000PRO

NEWLM-3000PRO

LM-550A3 series

LM-550A3 series

Printable consumables GRIP TUBE Wire outer φ1.9 to 2.1mm/
φ2.5 to 2.7mm/φ3.0 to 3.7mm
Wire outer φ1.9 to 2.1mm/
φ2.5 to 2.7mm/φ3.0 to 3.7mm
L tube Wire outer φ2.5 to 8.0mm Wire outer φ2.5 to 8.0mm
N tube Wire outer φ3.2 to 5.2mm Wire outer φ3.2 to 5.2mm
PVC tube Wire outer φ1.5 to 10.0mm Wire outer φ2.5 to 8.0mm
Heat shrink
tube
Wire outer φ2.0 to 19.0mm Wire outer φ2.0 to 6.5mm
MAX tape Width 5/9/12mm Width 5/9/12mm
MAX ID plate Width 4.1mm Width 4.1mm
Terminal
block marker
WAGO products
2009-113/114/115/145/5
15/615
MAX marker
strip
Width 8.5 to 10.7mm
Marker
strip
Width 5.5 to 12.0mm
Print speed(Tube print) 80mm/sec 40mm/sec
1 minute performance 85blocks 52blocks
Black ribbon length 200m/roll 110m/roll
Maximum print length 100m/file 100m/file
Tape(White & Yellow)length 30m(WY) 16m(W)/8m(Y)
Power down data YES NO
Interface WiFi/USB-A(USB flash memory)/USB-B(2.0 full speed)/LAN USB-A(USB flash memory)/USB-B(2.0 full speed)
Display Colourful LCD(Back light)/Touchscreen operation Monochrome LCD(Back light)/Keyboard operation

Download

Catalog

Catalog

Download
Quick Reference

Quick Reference

Download

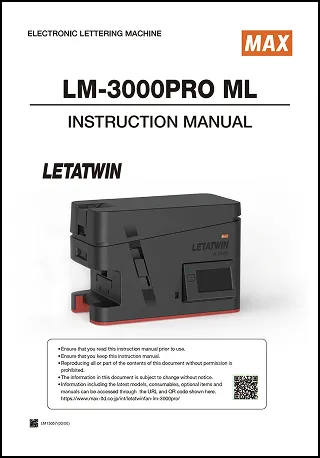

Manual

Manual

Download

Software & Firmware

When using this software, you must ensure that the software version matches the firmware version.
Please refer to the Release Note for the latest version information.
